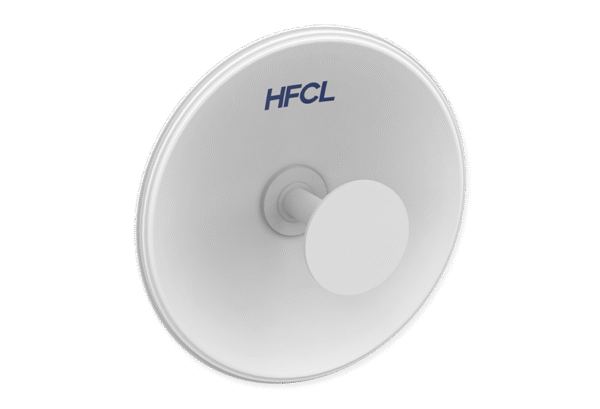

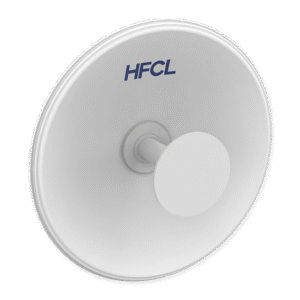

HF55-DPDISH-25 IO 5 GHz UBR Dual Pole Dish Antenna
Login to view prices
IO 5 GHz UBR Dual Pole Dish Antenna, 25 dBi, with N(Female) connectors 2×2 MIMO Easy to Mount Provide connectivity across very long distances Includes Pole Mount, RF Cables with N- Male Connectors; Connects to N-Female Connectors of radio Variants Previous HF55-DPDISH-27 IO 5 GHz UBR Dual Polarised Dish Antenna, 27 dBi, with N(Male) connectors Download…
Description
IO 5 GHz UBR Dual Pole Dish Antenna, 25 dBi, with N(Female) connectors
- 2×2 MIMO
- Easy to Mount
- Provide connectivity across very long distances
- Includes Pole Mount, RF Cables with N- Male Connectors; Connects to N-Female Connectors of radio
Variants
HF55-DPDISH-23
IO 5 GHz UBR Dual Polarised Dish Antenna, 23 dBi, with N(Male) connectors Download Datasheet
HF55-DPDISH-25
IO 5 GHz UBR Dual Polarised Dish Antenna, 25 dBi, with N(Male) connectors Download Datasheet
HF55-DPDISH-25 Electrical Parameters
- Frequency (MHz) : 4900 – 5900
- Gain (dBi) : 2 x 25±0.5
- VSWR: 1.5 : 1
- H Plane BW (°) : 9±0.5
- E Plane BW (°) : 9±0.5
- Polarization : Linear V & H
- Port to Port Isolation (dB) : > 30
- Max. Power Input (Watts) : 100
- Impedance (Ω) : 50
- Front to Back Ratio (dB) : >30
- Cross Poln. (dB) : >28
- Connector Termination : 2 x N(M) with 1 mtr 0.141 semi rigid extended cable
- Lightning Protection : DC Grounded
HF55-DPDISH-25 Mechanical Parameters
- Dimension (mm) : Ø 450
- Reflector Material : Galvanized steel
- Finish : White Powder coated
- Gross Weight (Kg) : 2.5±0.3
- Packing Dimension (inch) : 14 X 14 X 6
- Mounting Hardware : Galvanized
- Mounting Style : Pole
- Mounting Pole Diameter (inch) : 2
- Mounting Adjustment : H Plane ± 180°; V Plane ± 15°
Related products
HF55-DPDISH-29-ext IO 5 GHz UBR Dual Pole Dish Antenna
Login to view pricesHF55-DPDISH-23-ext IO 5 GHz UBR Dual Pole Dish Antenna

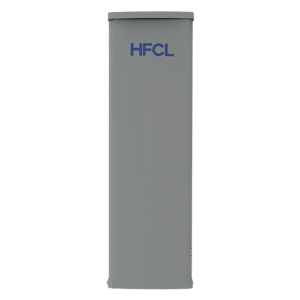

Login to view pricesHF55-DPSEC60-19-ext IO 5 GHz UBR Antenna
