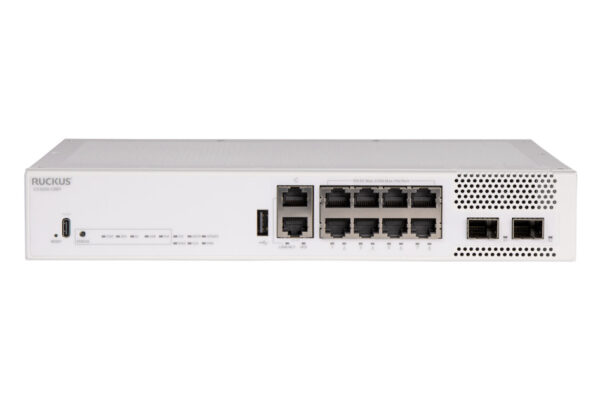

Name: RUCKUS ICX 8200-C08PF
SKU: 8200-C08PF

RUCKUS ICX 8200-C08PF

Specifications for RUCKUS ICX 8200-C08PF Product Classification Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America Product Type Ethernet switch Product Brand RUCKUS® General Specifications Switching Capacity, maximum 56 Gb/s 1 GbE RJ45 Ports, quantity, maximum 8 1 GbE SFP Ports, quantity, maximum 2 10 GbE SFP+ Ports, quantity, maximum…

SKU: 8200-C08PF

Category: Ruckus switchar

Description

Specifications for RUCKUS ICX 8200-C08PF

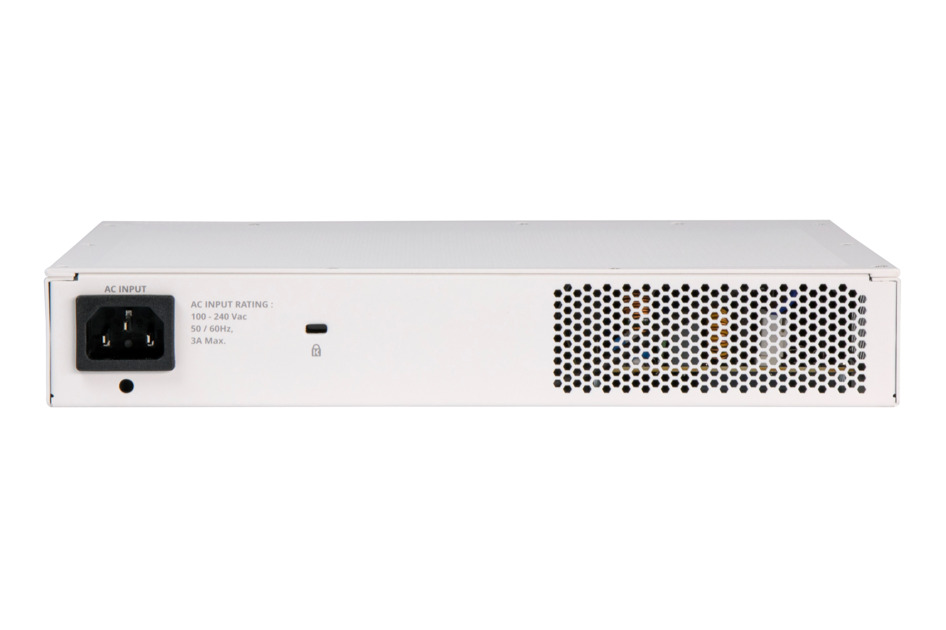

ICX8200-C08PF | RUCKUS ICX 8200-C08PF [0L5A5979 - ICX 8200-C08PF - Back]

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Ethernet switch
Product Brand	RUCKUS^®

General Specifications

Switching Capacity, maximum	56 Gb/s
1 GbE RJ45 Ports, quantity, maximum	8
1 GbE SFP Ports, quantity, maximum	2
10 GbE SFP+ Ports, quantity, maximum	2
PoE Power Budget, maximum	124 W
Switches per Stack, maximum	12
Aggregate Stack Bandwidth, maximum	240 Gb/s
PoE/PoE+	Yes
Stacking	Yes
sFlow	Yes
Layer 3 (STATIC, RIP, OSPF)	Yes
OpenFlow with Hybrid Port Mode	Yes
Campus Fabric Technology	No
Redundant Power Option	No
Hot Swap Internal Power Supplies & Fans	No
802.3bt2 (90 W PoE Power per Port)	No
VRF	Yes
EEE (Energy Efficient Ethernet)	Yes
IPsec VPN, with service module	No
MACsec	No
BGP	No
Reversible Airflow Option	No
VxLAN	Yes
Multi Chassis Trunking (MCT)	No
