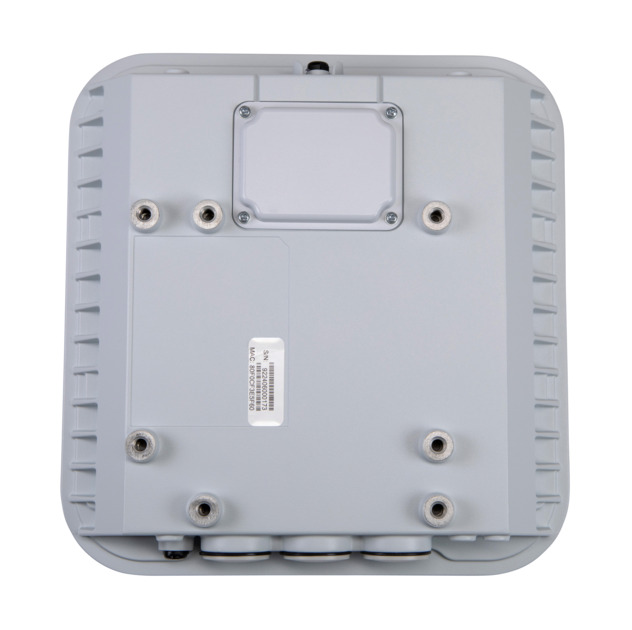

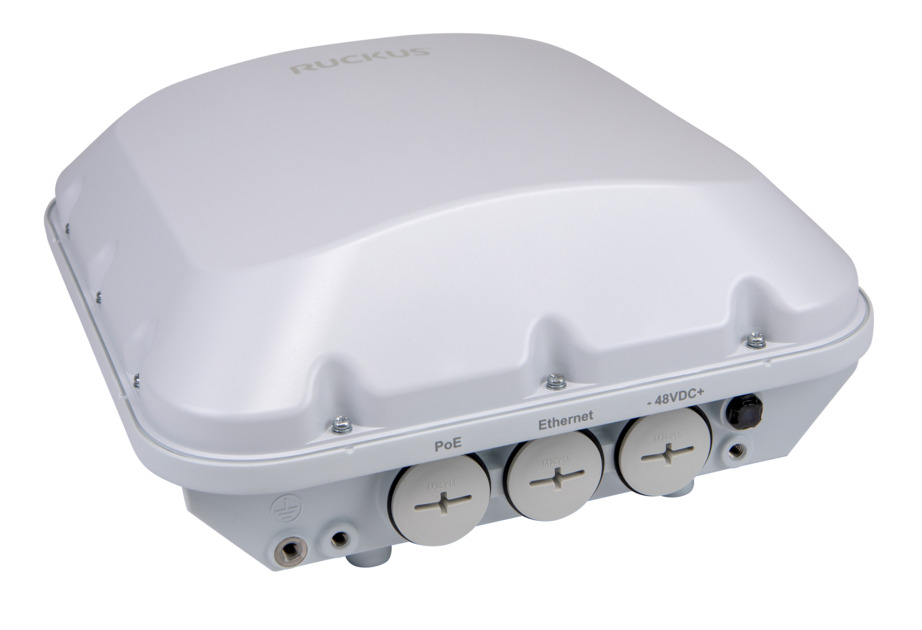

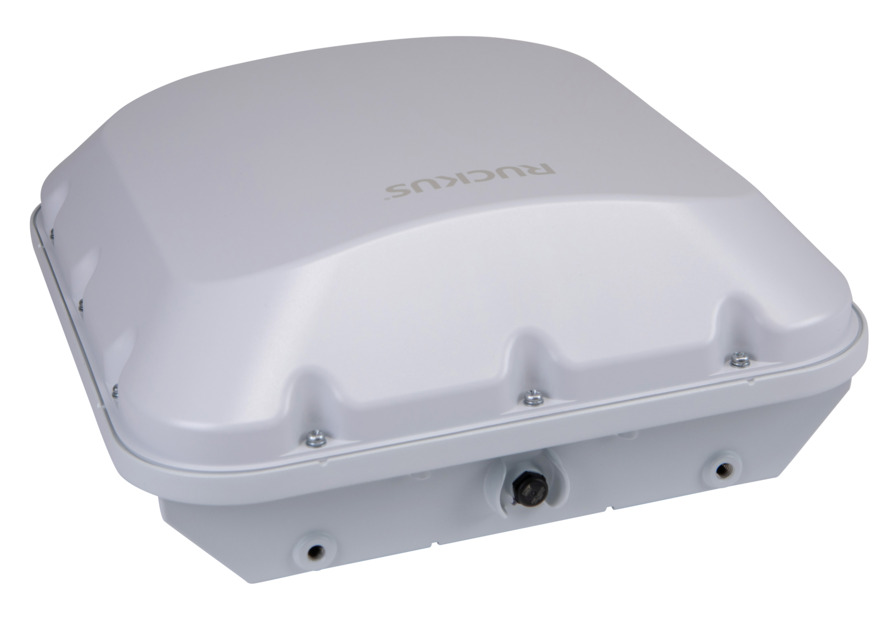

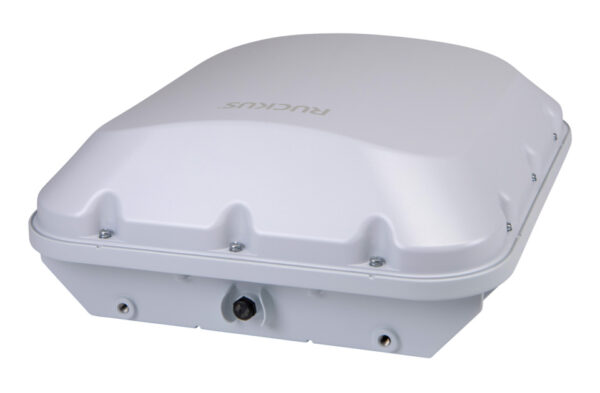

RUCKUS T670 Outdoor Access Point

Login to view prices

RUCKUS T670 Outdoor Access Point Features In today’s connected world, the expectation for seamless internet access extends far beyond the confines of indoor environments. Outdoor access points are becoming pivotal in various settings, such as parks, urban spaces, hospitality venues and sports complexes providing robust wireless connectivity that supports a range of activities and services.…

SKU: 901-T670-WW01
Category:

Description

RUCKUS T670 Outdoor Access Point Features

In today’s connected world, the expectation for seamless internet access extends far beyond the confines of indoor environments. Outdoor access points are becoming pivotal in various settings, such as parks, urban spaces, hospitality venues and sports complexes providing robust wireless connectivity that supports a range of activities and services. Additionally, outdoor Wi-Fi APs are commonly used by service providers for mobile data offload.

The RUCKUS T670 is a high density, high throughput, low latency tri-band AI-driven Wi-Fi 7 outdoor AP engineered to meet the demands of the most challenging environments, providing unprecedented performance in high-density settings such as stadiums, public venues, and smart cities.

The RUCKUS T670 is driven by RUCKUS AI, a cloud service for network assurance and business intelligence to enhance Wi-Fi 7 network resilience, and enhanced by RUCKUS BeamFlex® technology, a patented smart directional antenna system built into the AP. These superior technologies enable:
· Superior Throughput and Capacity
· Reduced Latency
· Adaptive Resilience

The RUCKUS T670 supports two Radio configurations to support different regulatory domains:
· Tri-band (2.4 GHz +5 GHz +6 GHz) for the US and Canada: This configuration supports Wi-Fi 7 simultaneously on 2.4GHz, 5GHz, and 6GHz frequency bands, with a maximum physical data rate of 9.336 Gbps.
· Dual-band (2+5) for global use: This setup offers Wi-Fi 7 simultaneously on both 2.4GHz and 5GHz frequency bands, with a maximum physical data rate of 6.454 Gbps.

Specifications for RUCKUS T670 Outdoor Access Point

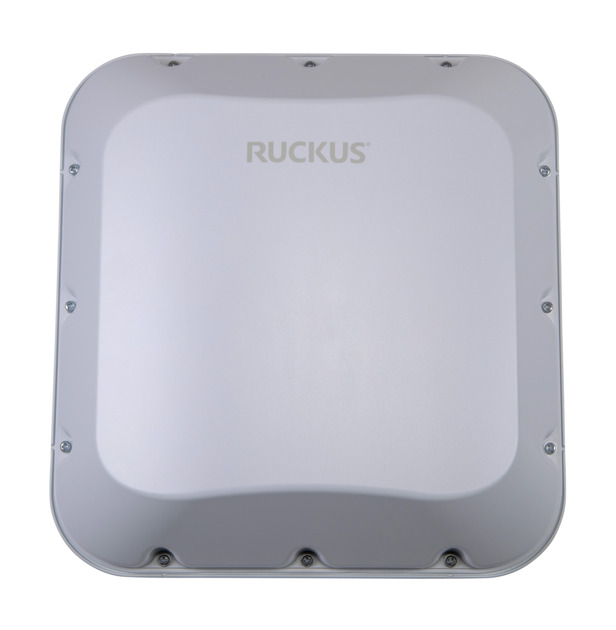

T670 | RUCKUS T670 Outdoor Access Point [RUCKUS T670 - 0L5A0874]

Product Classification

Regional AvailabilityAsia | Australia/New Zealand | EMEA | Latin America | North America
Product TypeOutdoor access point
Product BrandRUCKUS®

General Specifications

Antenna Patterns, per band4000+
Antenna GainUp to 4 dBi
BeamFlexYes
ChannelFlyYes
Concurrent Users768
Controller SupportRUCKUS One | RUCKUS SmartZone | RUCKUS Unleashed

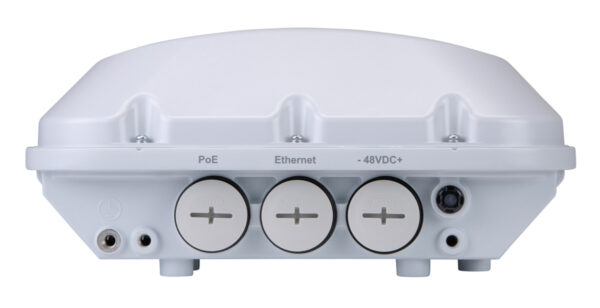

Ethernet Ports1 x 1 / 2.5 / 5 GbE | 1 x 1 GbE
Number of RadiosTri-Radio
PD-MRCYes
PHY Rate at 2.4 GHz, maximum689 Mb/s
PHY Rate at 5 GHz, maximum5765 Mb/s
PHY Rate at 6 GHz, maximum5765 Mb/s
Combined Max PHY Rate9340 Mb/s
Radio Chains and Streams2×2:2
Rx Sensitivity at 2.4 GHz-97 dBm
Rx Sensitivity at 5 GHz-100 dBm
Rx Sensitivity at 6 GHz-96 dBm
SmartMeshYes
Venue TypeHospitality | Public Venue | Retail | Transportation
Venue Sub-TypeHarbor Port | Outdoor Resort Spaces | Transit Stations
Wi-Fi Bands Supported2.4 GHz | 5 GHz | 6 GHz
Wi-Fi GenerationWi-Fi 7
Wi-Fi Interface StandardIEEE 802.11a/b/g/n/ac/ax/be

Environmental Specifications

Operating Temperature-40 °C to +65 °C (-40 °F to +149 °F)

Product Downloads and Links

ruckus-t670

Additional information

Weight2,8 kg
Dimensions24,8 × 23,8 × 10,8 cm
