HFDBV-NMOMNI-0406
Login to view prices
IO Dual Band Wi-Fi Antenna, Omni, 4 dBi (2.4 GHz) & 6 dBi (5 GHz), N-Male, 1×1 Easy to Mount Compatible with 2.4/5GHz 802.11n devices 360 Degrees of wireless network coverage Variants HFDBV-NMOMNI-0406 IO Dual Band Omni Directional Antenna, 2.4-2.5 & 5.1-5.9 GHz HFDBV-NMOMNI-0909 IO Dual Band External Omni Directional Antenna, 2.4-2.5 & 5.18-5.85 GHz;…
Description

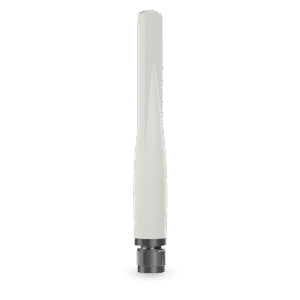

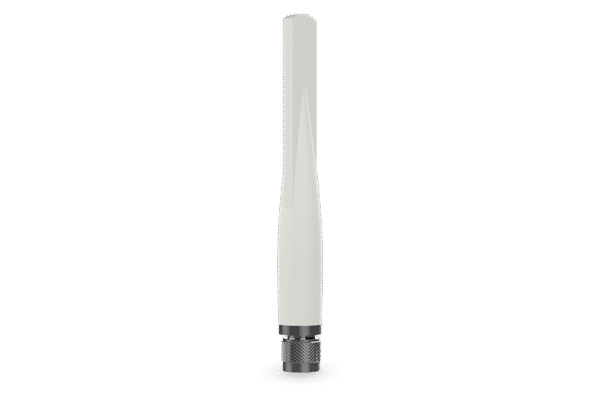

IO Dual Band Wi-Fi Antenna, Omni, 4 dBi (2.4 GHz) & 6 dBi (5 GHz), N-Male, 1×1
- Easy to Mount
- Compatible with 2.4/5GHz 802.11n devices
- 360 Degrees of wireless network coverage
Variants
HFDBV-NMOMNI-0406
IO Dual Band Omni Directional Antenna, 2.4-2.5 & 5.1-5.9 GHz
HFDBV-NMOMNI-0909
IO Dual Band External Omni Directional Antenna, 2.4-2.5 & 5.18-5.85 GHz; 9dBi
- Frequency (MHz) : 2400 – 2500 5100 – 5900
- Gain (dBi) : 4±0.5 6±0.5
- VSWR : 1.5 : 1.0(Typ) 1.5 : 1.0(Typ)/1.8 : 1.0(Max) 1.8 : 1.0(Max)
- Radiation Pattern : Omni Directional
- Polarization : Vertical
- Maximum Power Inputs (Watts) : 50
- Impedance (Ω) : 50
- Connector Termination : N (M)
Mechanical Parameters
- Dimension (mm) : Ø 22
- Length (mm) : ≈200
- Weight (gm) : 350±30
- Mounting Style : Direct Mount on AP
Environmental Parameters
- Temperature Range (°C) : ( – ) 40 to ( + ) 70
- Wind Speed (km/hr) : 200
- Water Protection : IP 65
Additional information
| Weight | 0,38 kg |
|---|---|
| Dimensions | 20 cm |
